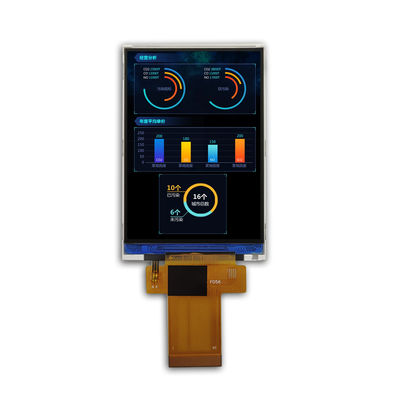

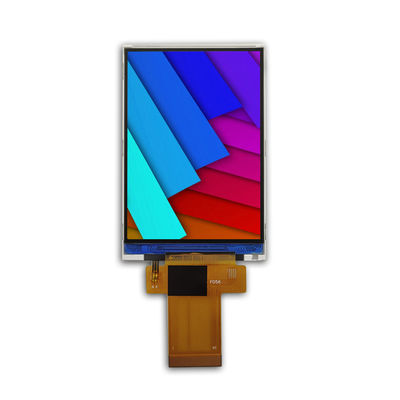

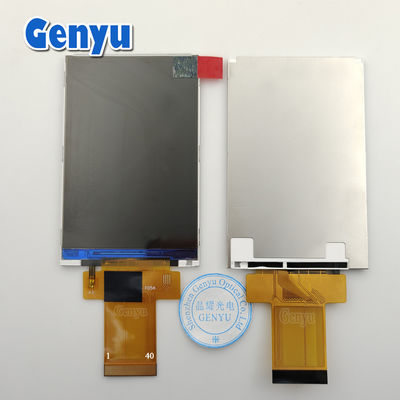

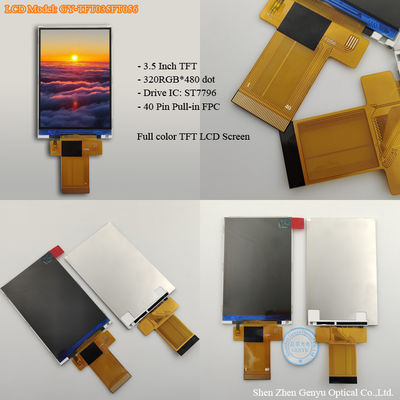

Module Size 54.48x84.71x3.2 mm 3.5 inch TFT LCD Touch Screen with ST7796 Drive IC and 40 Pin Parallel/SPI Interface

Nama merek:	Genyu
MOQ:	10 buah
harga:	$5.70/pieces 10-999 pieces

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Guangdong, Cina

Jenis:

Tft

Ukuran tampilan:

LCD TFT 3,5 inci

Jenis pemasok:

pabrikan

Jenis lampu latar:

Resolusi:

/, Tampilan TFT 480x320

Kecerahan:

Suhu operasi:

Merek:

Jenis tampilan:

Jenis pemasangan:

Ukuran layar:

Antarmuka komunikasi:

IC pengemudi:

Ukuran:

Layar TFT 3,5 Inci

Drive IC:

ST7796

Ukuran modul:

54.48x84.71x3.2 mm

Area aktif:

48.96x73.44mm

Tegangan catu daya:

2.8V

Antarmuka:

16/18bit sparallel, antarmuka SPI

Barang:

Layar sentuh LCD 3,5 inci 480x320

Aplikasi:

peralatan pintar

Panel sentuh:

Sentuhan Resistif

Menyoroti:

ST7796 TFT LCD Touch Screen

SPI Interface TFT LCD Touch Screen

3.5 inch TFT LCD Touch Screen

Deskripsi Produk

3.5 inch tft lcd touch screen 480x320 tft screen Drive IC ST7796 40 pin 8/16 Bit Parallel SPI lcd display 3.5 TFT LCD

Module Size 54.48x84.71x3.2 mm 3.5 inch TFT LCD Touch Screen with ST7796 Drive IC and 40 Pin Parallel/SPI Interface 0

Module Size 54.48x84.71x3.2 mm 3.5 inch TFT LCD Touch Screen with ST7796 Drive IC and 40 Pin Parallel/SPI Interface 1

Product Description

Brand Name: Genyu

Model Number: GY-TFT035F056 (with )

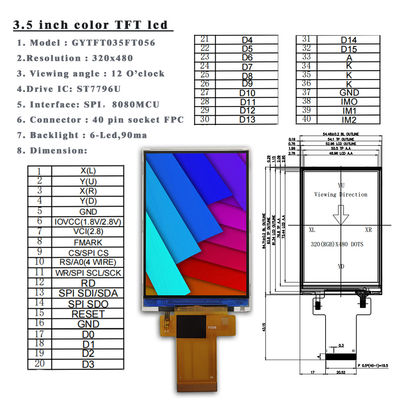

1. Features

TFT Size	3.5 inch	Interface	6bit/8bit/SPI
Display Type	Full color TFT LCD display	Viewing Angle	12"00
Resolution	320RGBx480Pixel	Drive IC	ST7796/ILI9488
Luminance	250 cd/m2	Voltage	2.8V
Operating Tem.	-20℃~+70℃	Connection method	40 PIN
Storage Tem.	-30℃~+80℃	LCD Size	54.4 x 84.7 x 3.2 mm
Backlight	6 LED/90mA	Active Area	48.9 x 73.4 mm

Full color 3.5 inch tft lcd touch screen 480x320 ST7796 40 pin 8/16 Bit Parallel SPI lcd display 3.5 TFT LCD

Module Size 54.48x84.71x3.2 mm 3.5 inch TFT LCD Touch Screen with ST7796 Drive IC and 40 Pin Parallel/SPI Interface 2

Module Size 54.48x84.71x3.2 mm 3.5 inch TFT LCD Touch Screen with ST7796 Drive IC and 40 Pin Parallel/SPI Interface 3

Module Size 54.48x84.71x3.2 mm 3.5 inch TFT LCD Touch Screen with ST7796 Drive IC and 40 Pin Parallel/SPI Interface 4

Module Size 54.48x84.71x3.2 mm 3.5 inch TFT LCD Touch Screen with ST7796 Drive IC and 40 Pin Parallel/SPI Interface 5

Module Size 54.48x84.71x3.2 mm 3.5 inch TFT LCD Touch Screen with ST7796 Drive IC and 40 Pin Parallel/SPI Interface 6

Module Size 54.48x84.71x3.2 mm 3.5 inch TFT LCD Touch Screen with ST7796 Drive IC and 40 Pin Parallel/SPI Interface 7

Module Size 54.48x84.71x3.2 mm 3.5 inch TFT LCD Touch Screen with ST7796 Drive IC and 40 Pin Parallel/SPI Interface 8

Module Size 54.48x84.71x3.2 mm 3.5 inch TFT LCD Touch Screen with ST7796 Drive IC and 40 Pin Parallel/SPI Interface 9

(320xRGBx480) 3.5 inch tft lcd Module Video With Resistance Touch Pane

Packaging & Shipping

Payment
Please contact us before you make payment.
Payment terms: T/T, Western Union. Paypal....

Delivery
Items will be shipped within 3 working days on payment received.

By DHL/UPS/FedEx/TNT: about 2-5 working days.
By EMS: about 7-10 working days.
By CPAM/HKPAM: about 10-30 working days.

Packaging
1. Anti-static bag or Bubble bag; (For samples)
2. Plastic pallet;
3. Carton box.

Module Size 54.48x84.71x3.2 mm 3.5 inch TFT LCD Touch Screen with ST7796 Drive IC and 40 Pin Parallel/SPI Interface 10

Module Size 54.48x84.71x3.2 mm 3.5 inch TFT LCD Touch Screen with ST7796 Drive IC and 40 Pin Parallel/SPI Interface 11
