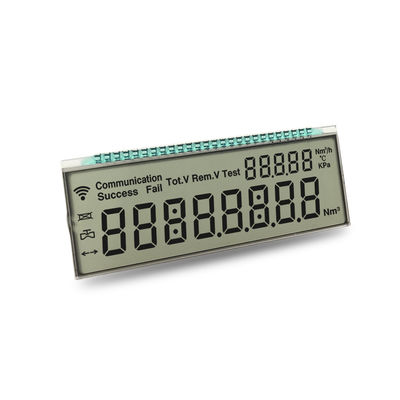

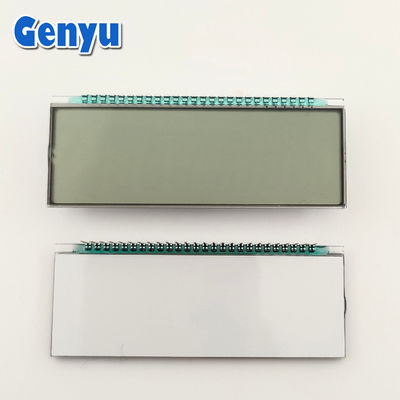

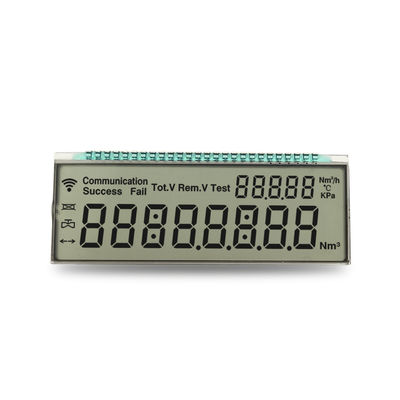

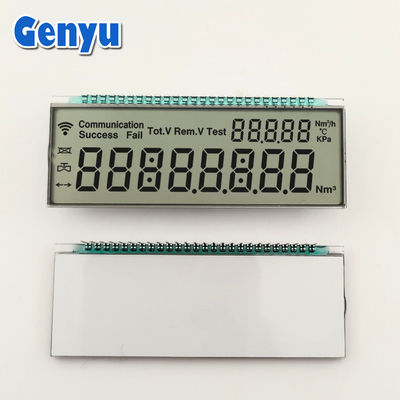

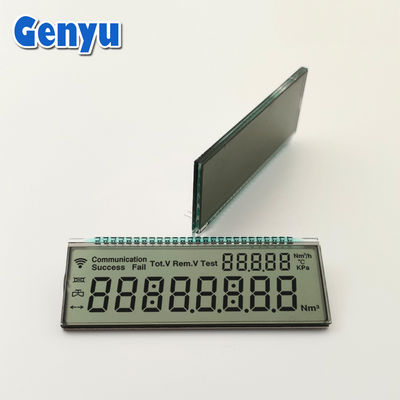

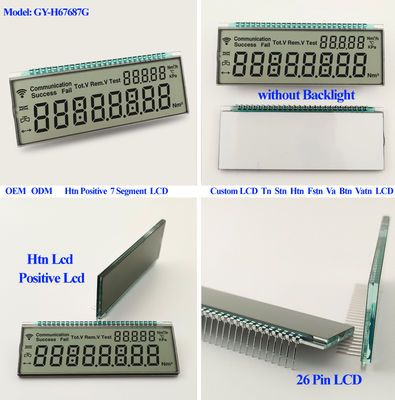

3.3V Operating Voltage Custom LCD Display for Positive Reflective Screen Energy Meter 8 Digit 7 Segment Monochrome LCD

Nama merek:	Genyu
harga:	$0.65/pieces 1-3999 pieces
Kemampuan Penyediaan:	1200000000 Potongan/potongan per Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Guangdong, Cina

Jenis:

Tampilan segmen

Ukuran tampilan:

65mmx25mm

Ukuran LCD:

65x25x2.8mm

Mode tampilan:

Reflektif Positif LCD HTN

Ukuran LCD:

Tampilan LCD khusus

Sudut pandang:

6:00

Tegangan operasi:

3.3v

Konektor:

26pin

Lampu latar:

Putih

Segmen:

Tampilan LCD 7 Segmen

Aplikasi:

Tampilan Meteran Energi

Warna:

LCD Monokrom Abu-abu

Pelabuhan:

Shenzhen

Kemasan rincian:

1. Tas elektrostatik
2. Kotak kemasan profesional

Menyediakan kemampuan:

1200000000 Potongan/potongan per Bulan

Menyoroti:

Energy Meter LCD Display

Monochrome LCD Display

Positive Reflective Screen LCD Display

Deskripsi Produk

Details Images

Custom Segment LCD Display

We can recommend similar LCDs according to your requirements. We can customize LCD for you according to your requirements.Custom segment LCD display, 7 segment LCD display, Customize LCD Glass Panels, Segment LCD Glass Panels, Segment TN Display LCDPanels.Custom Segment Liquid Crystal Displays

Display Mode	HTN Positive LCD
LCD Type	Custom Segment LCD
LCD Size	65x25x2.8mm
Color	Monochrome Gray, NO Backlight
Operating temp	-20°c~+70°c
Operating Voltage	3.3V
Connection method	26 pin
View Angle	6:00
Backlight	LCD without Backlight
For more datasheet and samples, Please Contact Erica or click here, Or click on the picture to see more SEG display		HT1621, HT1622 can be customized

Genyu company Segment LCD Display

For when you project needs a truly iconic look. we can provide a Custom Segment lcd with any number of segments, custom icons, and in any color.

Genyu's Custom Segment Liquid Crystal Displays are used in household electronic scales, UPS, household appliances, desk lamps, clocks, sphygmomanometers, blood glucose meters, ventilators, smart meters, inverters, solar energy, monitors used to measure specific gases in a mine, or in thermometers used to see if a child is running a fever. fuel dispenser counting display, electricity, meters, instruments, fax machines, etc.

Company Profile

COG Bonding workshop

High-speed automatic COG hot press, COB bonding machine, SMT and other production processes accurately control and control the parameters of the process such as tension, balance, temperature, pressure, etc., to ensure the reliability of the product.

Air shower

Nearly 6000 square meters of dust-free workshop, with a cleanliness level of 100k. The entrance and exit of workshop materials are equipped with totally closed transfer windows, and the entrance of workshop is equipped with air shower, which can effectively and rapidly remove dust, hair, hair chips and other sundries attached to clothes, and reduce the pollution problems caused by personnel entering and leaving the workshop.

We can design, develop and produce customized LCD, LCM, B/L, FPC and other products according to customers' requirements, At present, the annual production capacity of the factory has reached 100 million LCD screens, 30 million LCMS and 40 million B / L.
