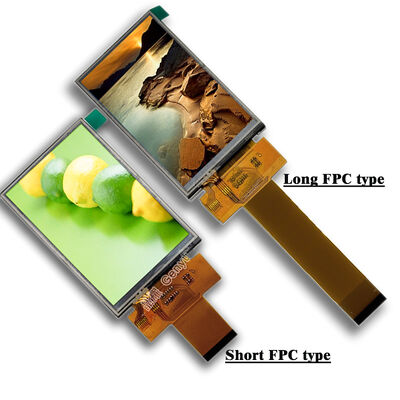

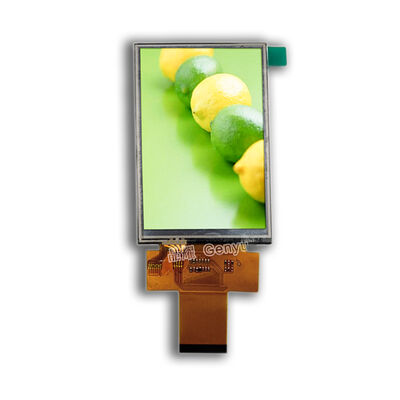

3.5 Inch 320x480 Resolution TFT LCD Display Module with Resistance Touch Panel for QR Code Display

Nama merek:	Genyu
MOQ:	10
harga:	Rp 60.494-77.778

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Guangdong, Tiongkok

Tipe Tampilan:

TFT

Ukuran Tampilan:

3,5 inci

Resolusi:

320x480 piksel

IC penggerak:

ILI9488

Ukuran Modul:

83.00x54.50x3.14mm

Daerah Aktif:

73,44x48,96mm

Catu daya:

3.3V

Antarmuka:

Paralel 16/18bit, RGB, SPI

Pengaturan piksel:

Cina

Pin FPC:

40 pin

Arus Lampu Latar:

120mA

Tegangan Lampu Latar:

3.2V

Arah Pandang:

jam 12

Panel sentuh:

Panel Sentuh Resistensi (RTP)

Titik Matriks:

320RGB(T) x 480(V)

Menyoroti:

320x480 Resolution TFT LCD Display

3.5 Inch TFT LCD Module

Resistance Touch Panel TFT LCD Panel

Deskripsi Produk

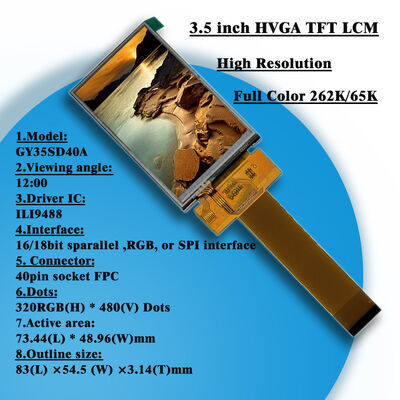

RGB 320x480 LCD Display ILI9488 LCD Module 3.5 inch TFT LCD Touch Screen

High-quality 3.5-inch TFT LCD display module with resistance touch panel, specifically designed for QR code display applications. Features ILI9488 drive IC and multiple interface options.

Pin Configuration

Pin	1	2	3	4	5	6	7	8	9-26	27	28	29	30	31	32	33	34	35	36	37	38	39	40
Symbol	LED-K	LED-A	GND	RESET	VSYNC	HSYNC	DOTCLK	ENABLE	DB17-DB0	SDI	SDO	RD	SCK/WR	RS	CS	TE	VCI	IOVCC	GND	YD	XR	YU	XL

Key Features

Display Type: 320RGB(H) × 480(V) Dots Matrix
Size: 3.5 inch TFT display
Drive IC: ILI9488
Pixel arrangement: RGB vertical stripe
Power supply: 3.3V
FPC: 40 pin connection type
Interface: 16/18 bits parallel RGB interface, SPI interface

Technical Specifications

Item	Description
Size	3.5 inch
Resolution	320 × 480
Touch	RTP (Resistance Touch Panel)
Interface	16/18 bits parallel, RGB, SPI interface
Operating voltage	3.3 V
LED Backlight supply	If=120mA, Vf=3.2V
Outline Dimension	83(L) × 54.5(W) × 3.14(T) mm
Active Area	73.44(L) × 48.96(W) mm
